Chalcogenide Mid-IR-Fiber Cables

Main features:

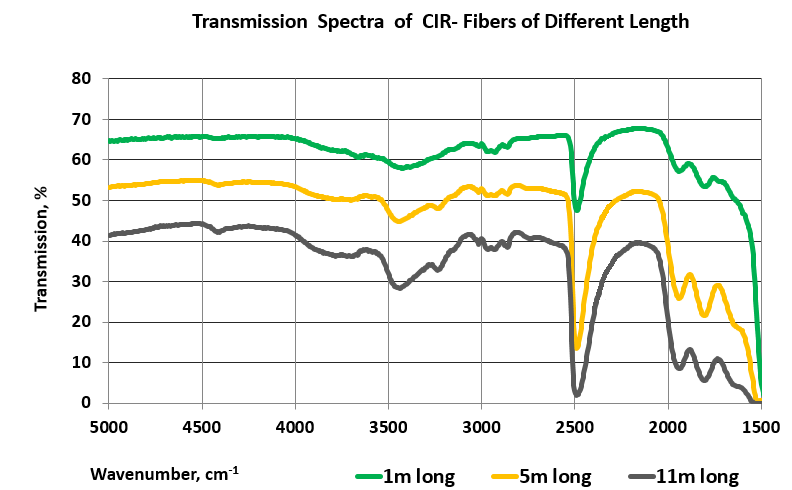

High transmittance in 1.1 – 6.5 μm range

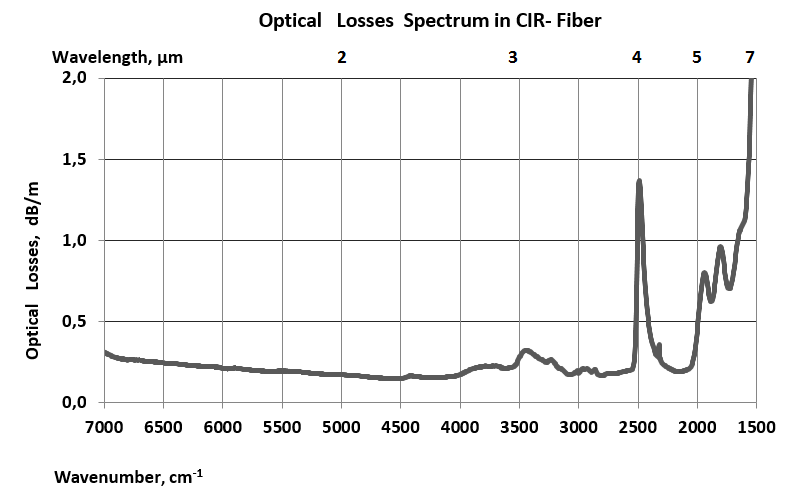

Low optical losses 0.2 – 0.3 dB/m at 2.5 – 4 μm and 4.5 – 5 μm
Core/Clad structure with core diameters span from 8 to 340 μm
Temperature range -50°C + 90°C

Available from stock:

Artphotonics_Sale Mid IR from Stock June 2025

Description

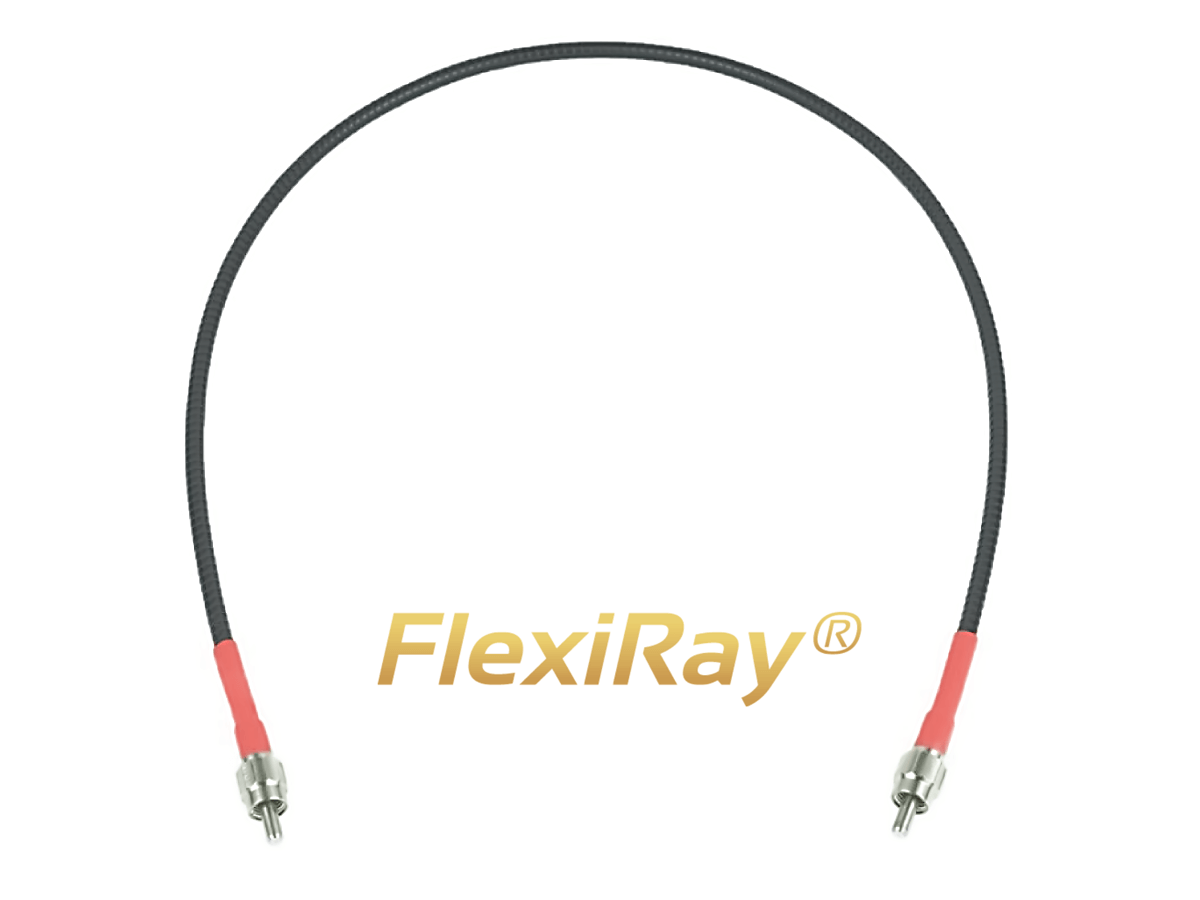

art photonics offers FlexiRay® Fiber Cables for a Mid-Infrared spectral range 1.1 – 6.5 μm. Based on Chalcogenide Infra-Red (CIR-) fibers, FlexiRay® fiber cables are used in a wide range of applications including power delivery of QCL, spectroscopy, Flexible IR-imaging systems, etc. CIR- fiber cables are available with a variety of standard fiber diameters, SMA-905, FC/PC, FC/APC connectors, and several types of protective tubing. Manufacturing technologies of art photonics assure precise fiber position inside the connector ferrule and a perfect surface quality of the fiber end. Before shipping, each fiber cable passes through detailed Quality Control procedure.

For more information please visit our “Downloads” section and find relative articles at our “Publications” page.

Specs

Standard product specifications
Optical Fiber Type	Chalcogenide Step Index Multimode
Wavelengths range	1.1 – 6.5 µm
Fiber Core/Cladding Sizes (μm)	see parameters of standard Chalcogenide fibers
Effective Numerical Aperture (NA)	see parameters of standard Chalcogenide fibers
Minimum bending radius depending on protective sheathing	PEEK tubing – 130mm; metal PVC coated tubing – 80mm; stainless steel tubing – 80mm; stainless steel silicone-coated tubing – 130mm
Connectors	SMA-905; FC/PC or FC/APC
Temperature range	-50°C to + 90°C

Parameters of standard Chalcogenide fibers
Code	Type	Core, µm	Cladding, µm	Protective Jacket, µm	NA	Min. bending Radius, mm
CIR8/300	Step Index Singlemode	8 ± 1	300 ± 15	400 ± 20	0.25 ± 0.02	60
CIR50/250	Step Index Few-mode	50 ± 3	250 ± 10	410 ± 20	0.13 ± 0.02	50
CIR250/300	Step Index Multimode	250 ± 10	300 ± 15	400 ± 30	0.30 ± 0.03	60
